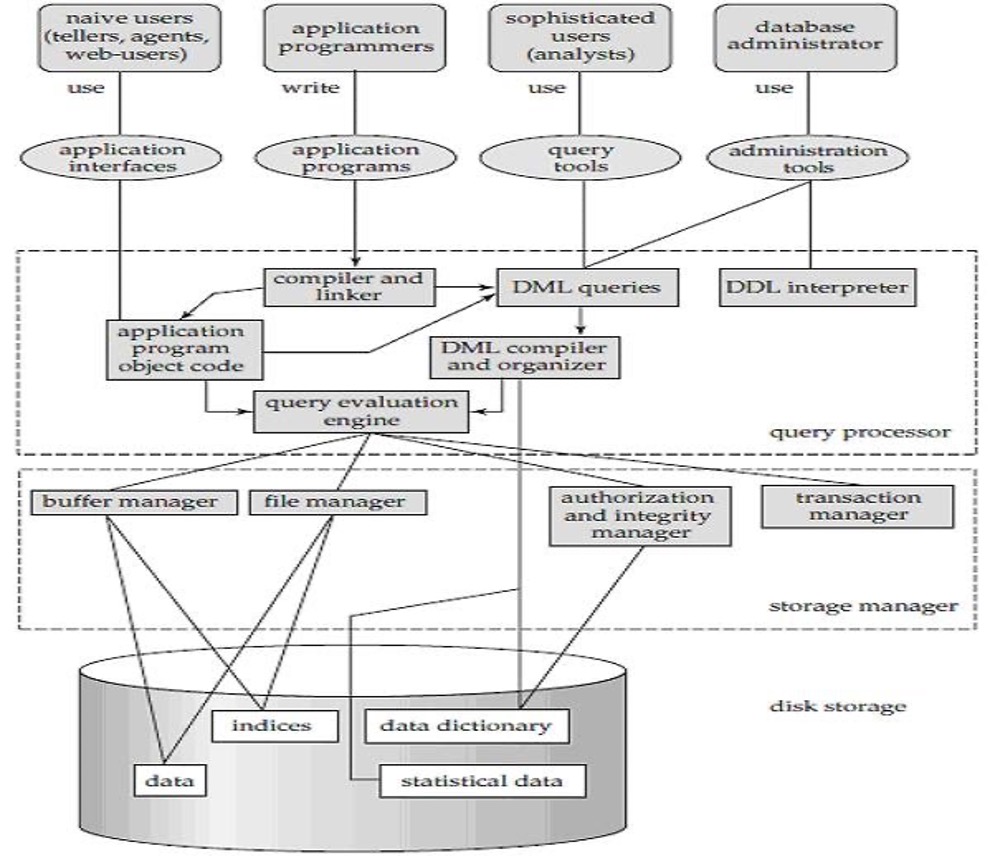

Database System Architecture

A database system is divided into modules that deal with different responsibilities. The overall system structure consists of various components that interact to provide the database services.

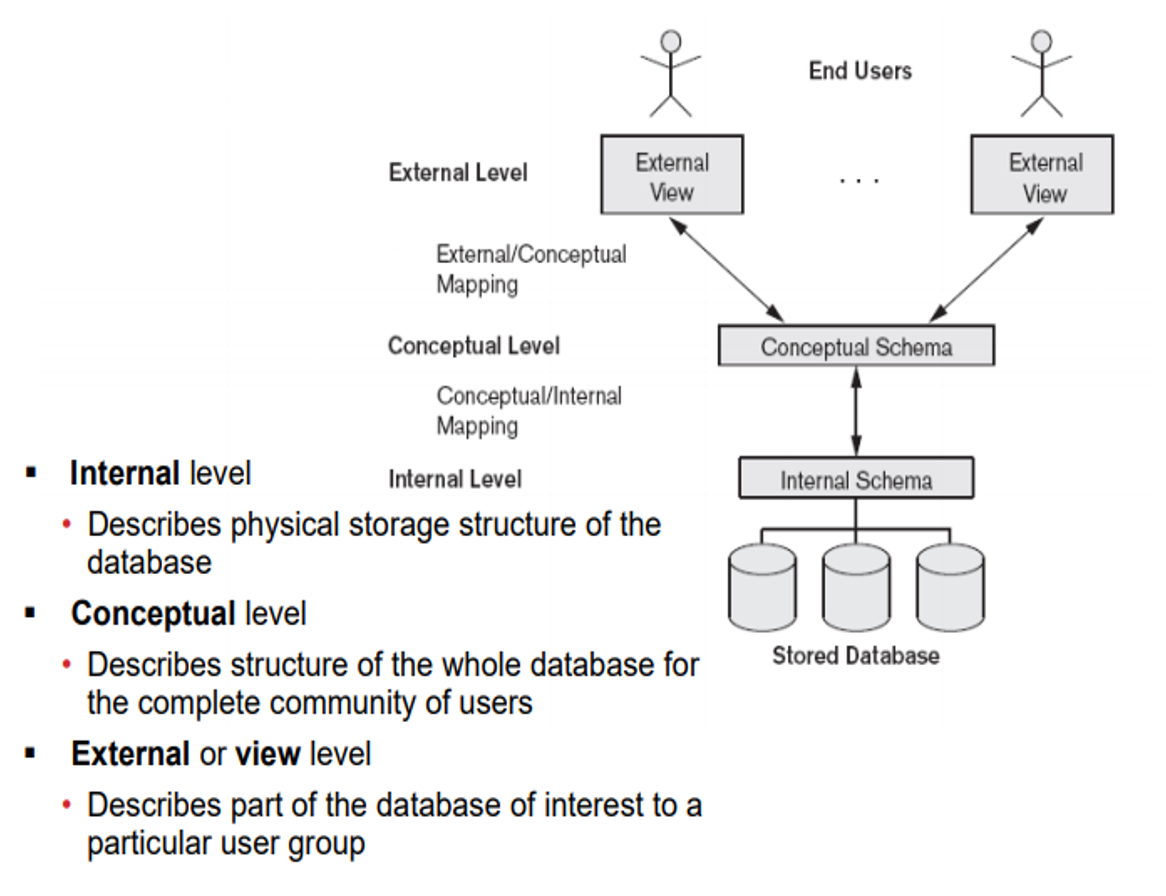

Three-Schema Architecture (ANSI-SPARC)

The three-schema architecture separates user applications from the physical database through three levels of abstraction:

1. EXTERNAL LEVEL (View Level):
   • Highest level of abstraction
   • Describes WHAT data is seen by individual users
   • Multiple external schemas (views) exist
   • Each view describes the portion of database relevant to a particular user group
   • Hides irrelevant details and restricts access
   • Different users can have completely different views

Example: HR Manager sees employee salaries, regular employee doesn't.

2. CONCEPTUAL LEVEL (Logical Level):
   • Community view of the database
   • Describes WHAT data is stored and relationships among data
   • Single conceptual schema for entire database
   • Hides details of physical storage
   • Focus on entities, data types, relationships, constraints
   • Used by Database Administrators (DBAs)

Example: Complete schema with all tables, relationships, constraints

3. INTERNAL LEVEL (Physical Level):
   • Lowest level of abstraction
   • Describes HOW data is physically stored
   • Deals with: Storage structures, indexes, access paths, file organization
   • Concerned with: Storage space allocation, data compression, encryption
   • Used by system programmers and DBAs

Example: B-tree indexes, heap files, hash buckets, block sizes

MAPPINGS BETWEEN LEVELS:
• External/Conceptual Mapping: Transforms external view requests to conceptual schema
• Conceptual/Internal Mapping: Maps conceptual schema to physical storage

Data Independence

The capacity to change schema at one level without affecting schema at the next higher level.

1. LOGICAL DATA INDEPENDENCE:
   • Ability to change conceptual schema without changing external schemas or application programs
   • Changes might include: Adding/removing attributes, creating/removing tables, changing constraints
   • External/Conceptual mapping handles the conversion
   • More difficult to achieve than physical independence

Example: Adding a new table or column doesn't affect existing views.

2. PHYSICAL DATA INDEPENDENCE:
   • Ability to change internal schema without changing conceptual schema
   • Changes might include: Using different file organization, creating/dropping indexes, changing storage devices, modifying data compression
   • Conceptual/Internal mapping handles the conversion
   • Easier to achieve than logical independence

Example: Creating an index on a column doesn't affect queries.

BENEFITS OF DATA INDEPENDENCE:
• Application programs don't need to be rewritten when database structure changes
• Physical storage can be optimized without affecting applications
• Different users can view data differently
• Security: Users only see authorized data
• Maintenance and evolution of database is easier

EXAMPLE 1: DDL STATEMENTS (Creating Database Schema)

-- Create a database
CREATE DATABASE UniversityDB;
USE UniversityDB;

-- Create Department table
CREATE TABLE Department (
DeptID INT PRIMARY KEY AUTO_INCREMENT,
DeptName VARCHAR(100) NOT NULL UNIQUE,
Building VARCHAR(50),
Budget DECIMAL(12,2) CHECK (Budget > 0)
);

-- Create Student table with constraints
CREATE TABLE Student (
StudentID INT PRIMARY KEY,
FirstName VARCHAR(50) NOT NULL,
LastName VARCHAR(50) NOT NULL,
Email VARCHAR(100) UNIQUE,
DeptID INT,
EnrollmentDate DATE DEFAULT CURRENT_DATE,
GPA DECIMAL(3,2) CHECK (GPA >= 0.0 AND GPA <= 4.0),
FOREIGN KEY (DeptID) REFERENCES Department(DeptID)
ON DELETE SET NULL
ON UPDATE CASCADE
);

-- Create index for faster queries
CREATE INDEX idx_student_lastname ON Student(LastName);

-- Alter table to add new column
ALTER TABLE Student
ADD COLUMN PhoneNumber VARCHAR(15);

-- Modify column definition
ALTER TABLE Student
MODIFY COLUMN Email VARCHAR(150);

-- Drop index
DROP INDEX idx_student_lastname ON Student;

-- Rename table
RENAME TABLE Student TO Students;

EXAMPLE 2: DML STATEMENTS (Data Manipulation)

-- INSERT: Adding new records
INSERT INTO Department (DeptName, Building, Budget)
VALUES ('Computer Science', 'Tech Building', 500000.00);

INSERT INTO Department VALUES
(NULL, 'Mathematics', 'Science Hall', 300000.00),
(NULL, 'Physics', 'Science Hall', 450000.00);

INSERT INTO Students (StudentID, FirstName, LastName, Email, DeptID, GPA)
VALUES (101, 'John', 'Doe', 'john.doe@uni.edu', 1, 3.75);

-- SELECT: Retrieving data
-- Simple query
SELECT * FROM Students;

-- With WHERE clause
SELECT FirstName, LastName, GPA
FROM Students
WHERE GPA > 3.5;

-- With JOIN
SELECT S.FirstName, S.LastName, D.DeptName
FROM Students S
JOIN Department D ON S.DeptID = D.DeptID;

-- With aggregation
SELECT D.DeptName, COUNT(S.StudentID) as StudentCount, AVG(S.GPA) as AvgGPA
FROM Department D
LEFT JOIN Students S ON D.DeptID = S.DeptID
GROUP BY D.DeptName
HAVING COUNT(S.StudentID) > 0;

-- UPDATE: Modifying existing records
UPDATE Students
SET GPA = 3.85
WHERE StudentID = 101;

-- Update with calculation
UPDATE Department
SET Budget = Budget * 1.10
WHERE DeptName = 'Computer Science';

-- DELETE: Removing records
DELETE FROM Students
WHERE EnrollmentDate < '2020-01-01';

-- Delete all records (but keep table structure)
DELETE FROM Students;
-- Or use TRUNCATE (faster)
TRUNCATE TABLE Students;

EXAMPLE 3: DCL STATEMENTS (Access Control)

-- Create users
CREATE USER 'student_user'@'localhost' IDENTIFIED BY 'password123';
CREATE USER 'faculty_user'@'localhost' IDENTIFIED BY 'securepass456';

-- GRANT privileges
-- Give SELECT access to student
GRANT SELECT ON UniversityDB.Students TO 'student_user'@'localhost';

-- Give multiple privileges to faculty
GRANT SELECT, INSERT, UPDATE ON UniversityDB.* TO 'faculty_user'@'localhost';

-- Grant with ability to grant to others
GRANT ALL PRIVILEGES ON UniversityDB.* TO 'admin_user'@'localhost'
WITH GRANT OPTION;

-- Create role and assign privileges
CREATE ROLE 'data_analyst';
GRANT SELECT ON UniversityDB.* TO 'data_analyst';
GRANT 'data_analyst' TO 'analyst_user'@'localhost';

-- REVOKE privileges
REVOKE INSERT, UPDATE ON UniversityDB.Students FROM 'faculty_user'@'localhost';

-- Revoke all privileges
REVOKE ALL PRIVILEGES ON UniversityDB.* FROM 'student_user'@'localhost';

EXAMPLE 4: TCL STATEMENTS (Transaction Control)

-- Bank transfer example demonstrating transaction
START TRANSACTION;

-- Deduct from account A
UPDATE Accounts
SET Balance = Balance - 500
WHERE AccountID = 'A123';

-- Add to account B
UPDATE Accounts
SET Balance = Balance + 500
WHERE AccountID = 'B456';

-- Check if any account went negative
IF (SELECT MIN(Balance) FROM Accounts WHERE AccountID IN ('A123', 'B456')) < 0 THEN
ROLLBACK; -- Undo both updates
SELECT 'Transaction failed: Insufficient funds' AS Message;
ELSE
COMMIT; -- Make changes permanent
SELECT 'Transaction successful' AS Message;
END IF;

-- Using SAVEPOINT
START TRANSACTION;

INSERT INTO Students VALUES (201, 'Alice', 'Smith', 'alice@uni.edu', 1, 3.5);
SAVEPOINT sp1;

INSERT INTO Students VALUES (202, 'Bob', 'Johnson', 'bob@uni.edu', 2, 3.2);
SAVEPOINT sp2;

INSERT INTO Students VALUES (203, 'Charlie', 'Brown', 'charlie@uni.edu', 1, 3.9);

-- Error in last insert, rollback to sp2
ROLLBACK TO SAVEPOINT sp2;

-- Commit the first two inserts
COMMIT;

EXAMPLE 5: DATA INDEPENDENCE IN ACTION

SCENARIO: Physical Data Independence

-- Original: No index, slow query
SELECT * FROM Students WHERE LastName = 'Smith';
-- Query scans entire table (slow for large tables)

-- DBA creates index (internal level change)
CREATE INDEX idx_lastname ON Students(LastName);

-- Same query, now fast (uses index)
SELECT * FROM Students WHERE LastName = 'Smith';
-- Application code unchanged, but performance improved!

SCENARIO: Logical Data Independence

-- Original view used by application
CREATE VIEW StudentInfo AS
SELECT StudentID, FirstName, LastName, Email
FROM Students;

-- DBA adds new column to base table (conceptual level change)
ALTER TABLE Students ADD COLUMN MiddleName VARCHAR(50);

-- View still works, application unaffected
SELECT * FROM StudentInfo;
-- Returns same columns as before

REAL-WORLD APPLICATIONS AND BEST PRACTICES:

1. THREE-TIER WEB APPLICATION EXAMPLE:

Presentation Tier (Frontend):
• React/Angular/Vue application
• Displays data to user
• Sends API requests

Application Tier (Backend):
• Node.js/Python/Java server
• Business logic
• Validates data
• Manages database connections
• Uses connection pooling for efficiency

Database Tier:
• MySQL/PostgreSQL/Oracle
• Stores persistent data
• Enforces constraints
• Handles transactions

Example Code (Node.js + MySQL):

const mysql = require('mysql2');

// Create connection pool (reuses connections)
const pool = mysql.createPool({
host: 'localhost',
user: 'app_user',
password: 'secure_password',
database: 'UniversityDB',
waitForConnections: true,
connectionLimit: 10
});

// API endpoint using DML
app.get('/api/students', async (req, res) => {
const [rows] = await pool.promise().query(
'SELECT StudentID, FirstName, LastName, GPA FROM Students WHERE GPA > ?',
[3.0]
);
res.json(rows);
});

app.post('/api/students', async (req, res) => {
const { firstName, lastName, email, deptId } = req.body;
const [result] = await pool.promise().query(
'INSERT INTO Students (FirstName, LastName, Email, DeptID) VALUES (?, ?, ?, ?)',
[firstName, lastName, email, deptId]
);
res.json({ studentId: result.insertId, message: 'Student created' });
});

2. IMPLEMENTING DATA INDEPENDENCE:

Physical Independence Example:
-- Application uses view, not table directly
CREATE VIEW ActiveStudents AS
SELECT StudentID, FirstName, LastName, Email, GPA
FROM Students
WHERE Status = 'Active';

-- DBA can change physical storage without affecting app
CREATE INDEX idx_status ON Students(Status); -- Add index
ALTER TABLE Students ENGINE=InnoDB; -- Change storage engine
PARTITION TABLE Students BY RANGE(EnrollmentYear); -- Partition table

-- Application code unchanged:
SELECT * FROM ActiveStudents; -- Still works!

3. DBA DAILY TASKS:

Morning:
• Check database server status
• Review overnight backup logs
• Monitor disk space usage
• Check for slow queries

During Day:
• Create/modify schemas as requested
• Grant/revoke user privileges
• Investigate performance issues
• Optimize slow queries with indexes

End of Day:
• Schedule backups
• Review security logs
• Plan maintenance windows

4. SECURITY BEST PRACTICES:

Principle of Least Privilege:
-- Don't give application full admin access
-- Create specific user with minimal needed privileges

CREATE USER 'webapp_user'@'%' IDENTIFIED BY 'strong_password';
GRANT SELECT, INSERT, UPDATE ON UniversityDB.Students TO 'webapp_user'@'%';
GRANT SELECT ON UniversityDB.Department TO 'webapp_user'@'%';
-- No DELETE, DROP, or other dangerous operations

Use Views for Security:
-- Hide sensitive columns
CREATE VIEW PublicStudentInfo AS
SELECT StudentID, FirstName, LastName, DeptID
FROM Students;
-- SSN, GPA, Address hidden

GRANT SELECT ON UniversityDB.PublicStudentInfo TO 'public_user'@'%';

5. PERFORMANCE OPTIMIZATION:

Indexing Strategy:
• Index columns used in WHERE clauses
• Index columns used in JOINs
• Index columns used in ORDER BY
• Don't over-index (slows INSERT/UPDATE)

-- Good index candidates
CREATE INDEX idx_dept ON Students(DeptID); -- JOIN column
CREATE INDEX idx_gpa ON Students(GPA); -- WHERE filter
CREATE INDEX idx_name ON Students(LastName, FirstName); -- Composite for searches

Query Optimization:
• Use EXPLAIN to analyze query plans
• Avoid SELECT *; specify needed columns
• Use appropriate JOINs
• Consider query caching

EXPLAIN SELECT S.FirstName, S.LastName, D.DeptName
FROM Students S
JOIN Department D ON S.DeptID = D.DeptID
WHERE S.GPA > 3.5;

6. INDUSTRY TOOLS:

• MySQL Workbench: Visual database design, query tool
• pgAdmin: PostgreSQL administration
• DBeaver: Universal database tool
• DataGrip: JetBrains database IDE
• phpMyAdmin: Web-based MySQL administration
